This guide explains how to integrate our usage monitoring components using iframes. These components provide real-time and cached consumption data visualization with a responsive design.

​

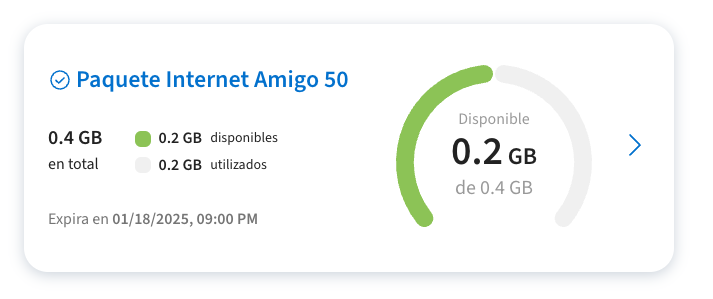

Usage Summary Component

The Usage Summary component displays an overview of the customer’s consumption data, including total usage, available balance, and purchase recommendations when necessary.

​
Integration

<iframe
  src="https://your-domain.com/usage?externalCode=USER123"
  width="100%"
  frameborder="0"
  id="usageSummary">
</iframe>
The externalCode parameter represents a unique identifier for the user. In many implementations, this is the MSISDN (Mobile Station International Subscriber Directory Number) - the user’s phone number in international format. However, it can be any unique identifier that your system uses to identify users.

​

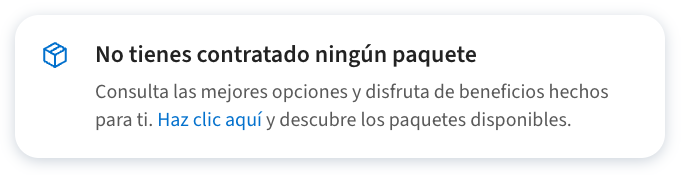

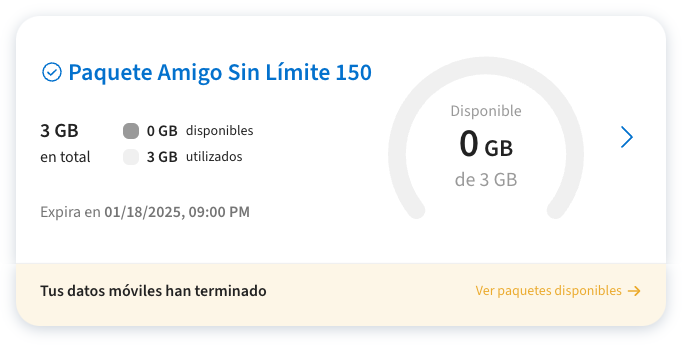

Empty State and Alerts

The component includes built-in states for various scenarios:

​

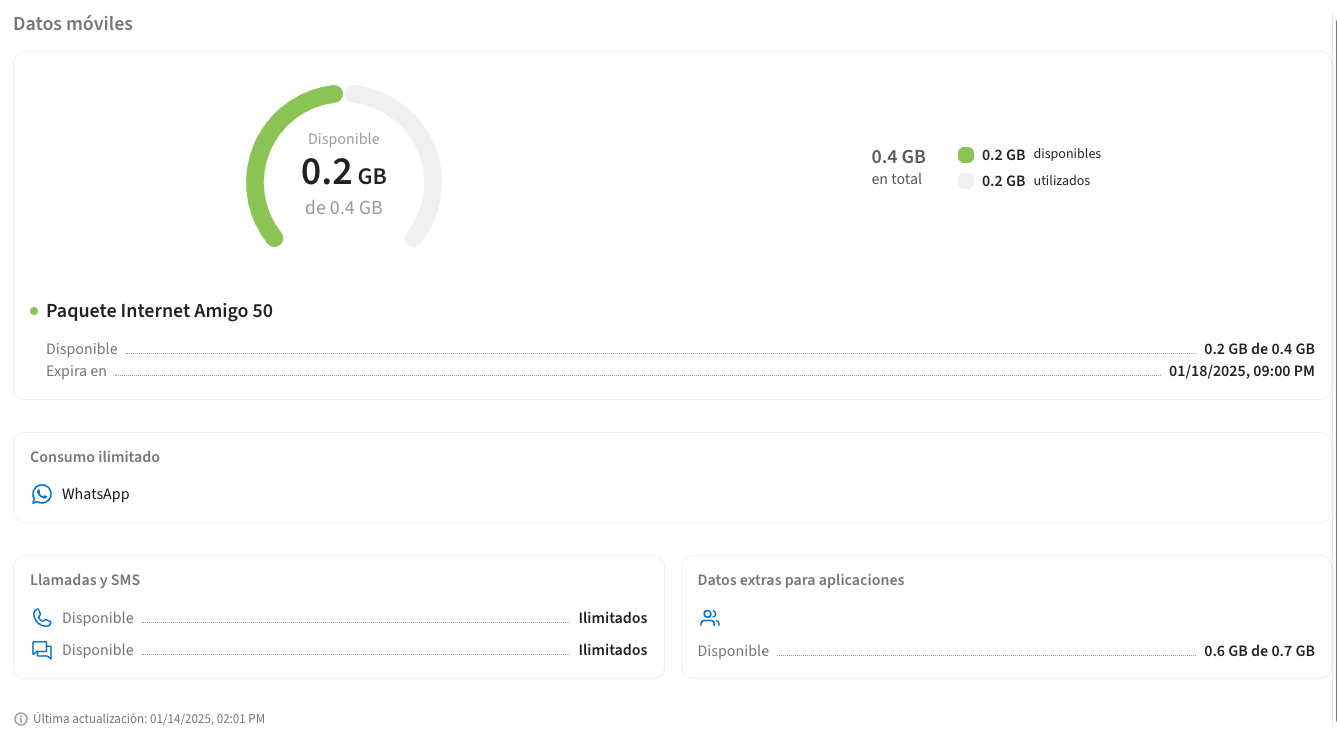

Usage Details Component

The Usage Details component provides a detailed breakdown of consumption by product and shows zero-rating/sponsored apps information.

​
Integration

<iframe
  src="https://your-domain.com/usage/details?lineId=123&externalCode=USER123"
  width="100%"
  frameborder="0"
  id="usageDetails">
</iframe>

​

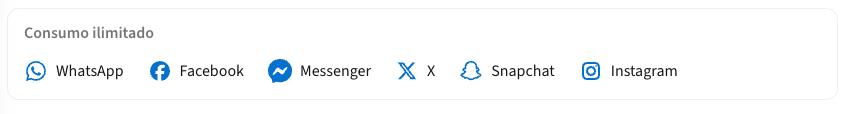

Zero Rating Apps Display

​
Cache Management

Both components implement server-side caching for improved performance and resilience. This ensures that usage information remains available even when some external mediation services are temporarily unavailable.

​
Cache Behavior

  • Default: Components serve cached data when available
  • Cache updates automatically in the background
  • Cache invalidation follows business rules for data freshness

​
Forcing Cache Bypass

To bypass the cache and fetch fresh data, add online=true to the URL:
<iframe
  src="https://your-domain.com/usage/details?lineId=123&online=true"
  width="100%"
  frameborder="0"
  id="usageDetails">
</iframe>

​
Customization

The components support extensive customization through the Wave API, allowing you to tailor the user experience to match your brand and requirements.

​
Customizable Elements

The following elements can be customized remotely:
  • Text Content
    • Labels and headings
    • Button text
    • Error messages
    • Information tooltips
    • Success/failure messages
  • Visual Elements
    • Primary and secondary colors
    • Button styles
    • Card backgrounds
    • Border colors
    • Icon colors
  • Links and Navigation
    • CTA button destinations
    • External links
    • Help/support links
    • Terms and conditions URLs

​
Applying Customizations

Customizations are applied through the Wave API configuration. The components automatically fetch and apply these settings at runtime

​
Dynamic Height Adjustment

All components emit a postMessage event containing the scroll height. This allows for dynamic iframe height adjustment to prevent unwanted scrollbars.
window.addEventListener('message', function(e) {
  if (e.data && e.data.scrollHeight) {
    const iframe = document.querySelector('#myIframe');
    iframe.style.height = `${e.data.scrollHeight}px`;
  }
});
The component sends height updates on:
  • Initial load
  • State changes
  • Content updates
  • Error messages display
Remember to implement the height adjustment listener for all iframe integrations to ensure proper display without scrollbars.
