This guide explains how to integrate our web components using iframes. These components are designed to be easily embedded into any web application while maintaining consistent styling and behavior.

​

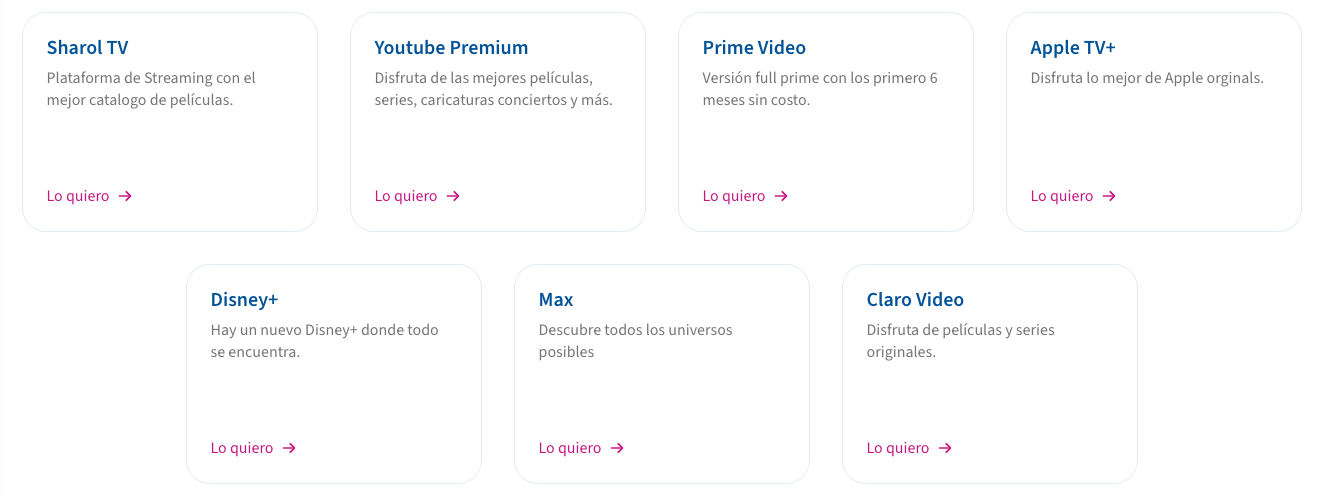

Offers Grid Component

The Offers Grid component displays a collection of offer cards with various layout options and filtering capabilities.

​
Integration

<iframe
  src="https://wave-domain.com/offers?cardType=features&productId=123"
  width="100%"
  frameborder="0"
  id="offersGrid">
</iframe>

​
Query Parameters

ParameterDescriptionExample
cardTypeVisual style of cards (text, hero, squared, features, topup)cardType=features
pagePage number for paginationpage=1
pageSizeNumber of items per pagepageSize=12
productIdFilter offers by product IDproductId=123
salesChannelIdFilter by sales channelsalesChannelId=456
billingTypeFilter by billing type (PREPAID/POSTPAID)billingType=PREPAID
nameFilter by offer namename=Premium
metadataFilter by metadata fieldsmetadata.key=value
orderByField to sort by (createdAt/name)orderBy=createdAt
orderSort direction (ASC/DESC)order=desc

​
Card Types

The component supports different card layouts through the cardType parameter:

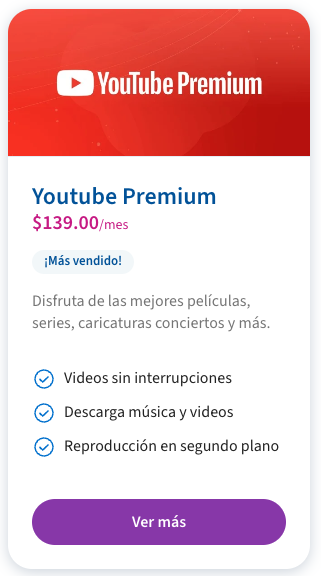

  1. default: Standard detailed card with hero, title, description, price, and features

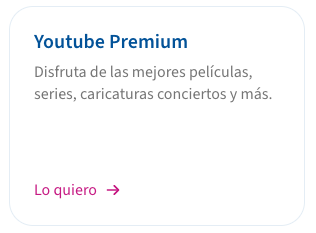

  1. text: Simple text-based card with title and description

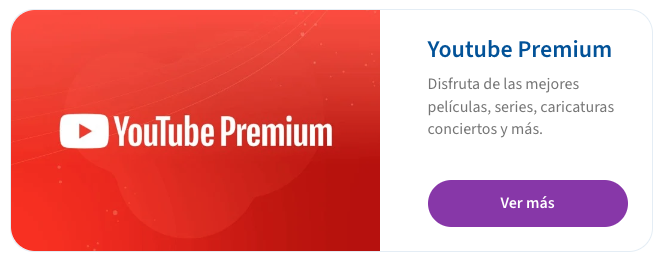

  1. hero: Large card with prominent image
  1. squared: Compact square card with image
  1. features: Detailed card with feature list
  1. topup: Special card for top-up offers

​
Single Offer Card Component

Displays a single offer card using base64 encoded offer data.

​
Integration

<iframe
  src="https://wave-domain.com/offers?data=base64EncodedOfferData&cardType=features"
  width="100%"
  frameborder="0"
  id="singleOffer">
</iframe>

​
Offer Object Structure

The offer object should follow this structure before base64 encoding:
interface Offer {
  id: string;
  name: string;
  description: string;
  billingType: "PREPAID" | "POSTPAID";
  pricing: {
    model: "STANDARD";
    properties: {
      price: string;
      currency: string;
      recurrence: "SPOT" | "DAILY" | "MONTHLY" | "WEEKLY" | "YEARLY";
      payInAdvance: boolean;
    };
  };
  product: {
    id: string;
    name: string;
    description: string;
    metadata: Record<string, string | number | boolean>;
  };
  features: string[];
  metadata: Record<string, string | number | boolean>;
  ctaLink?: string;
  bannerUrl?: string;
}
Example usage:
const offerData = {
  id: "123",
  name: "Premium Package",
  // ... other fields
};
const base64Data = btoa(JSON.stringify(offerData));
const iframeSrc = `https://wave-domain.com/offers?data=${base64Data}&cardType=features`;

​

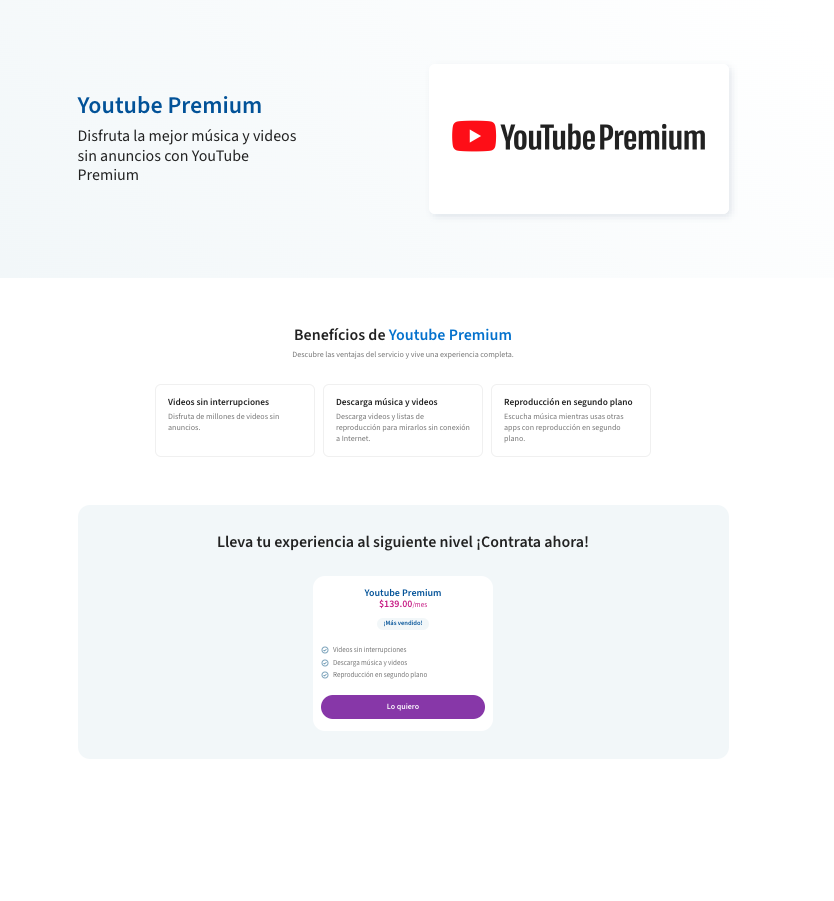

Product Page Component

Displays a complete product page with details and associated offers.

​
Integration

<iframe
  src="https://wave-domain.com/products/123"
  width="100%"
  frameborder="0"
  id="productPage">
</iframe>
The product page consists of three main sections:
  1. Product Hero - Displays main product information
  2. Product Features - Lists product features
  3. Product Offers - Shows associated offers
This component automatically fetches and displays all product information and related offers based on the provided product ID in the URL.

​
Checkout Component

The Checkout component provides a complete purchase flow for offers. It can be integrated into any web application and maintains communication with the parent window for dynamic height adjustment.

​
Integration

<iframe
  src="https://wave-domain.com/offers/checkout/123"
  width="100%"
  frameborder="0"
  id="checkoutFlow">
</iframe>

​
Component Flow

The checkout process consists of three main states:
  1. Initial verification (required only when user is not logged in)
  2. Order confirmation
  3. Success message

​

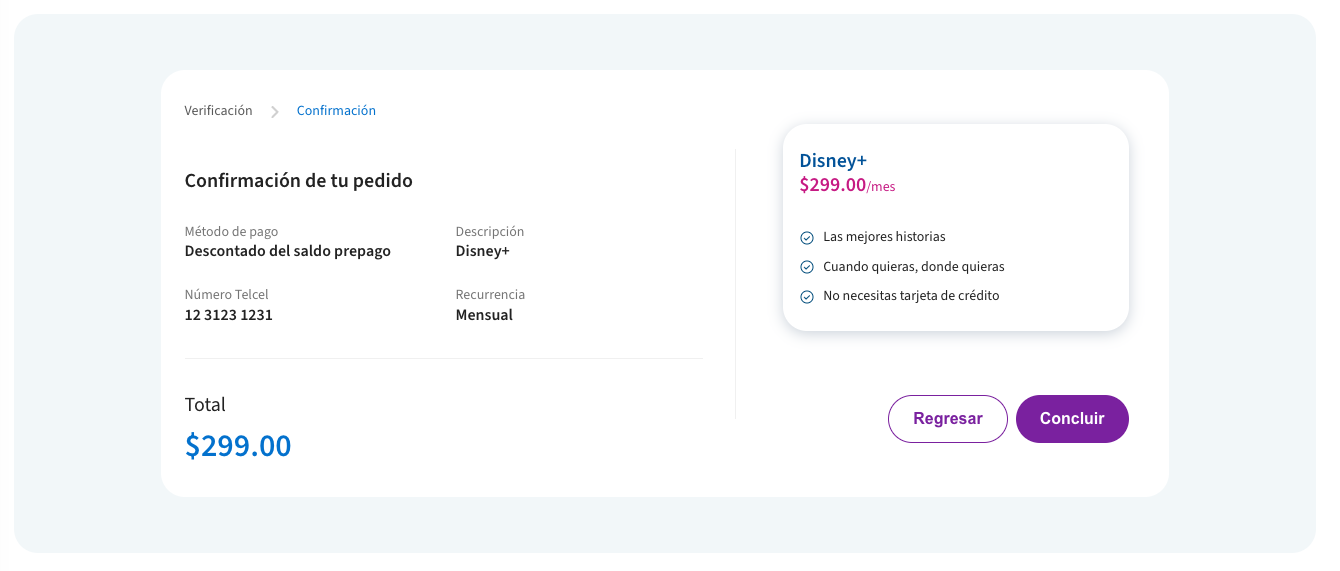

Summary View

The summary view displays the offer details and purchase confirmation:

​

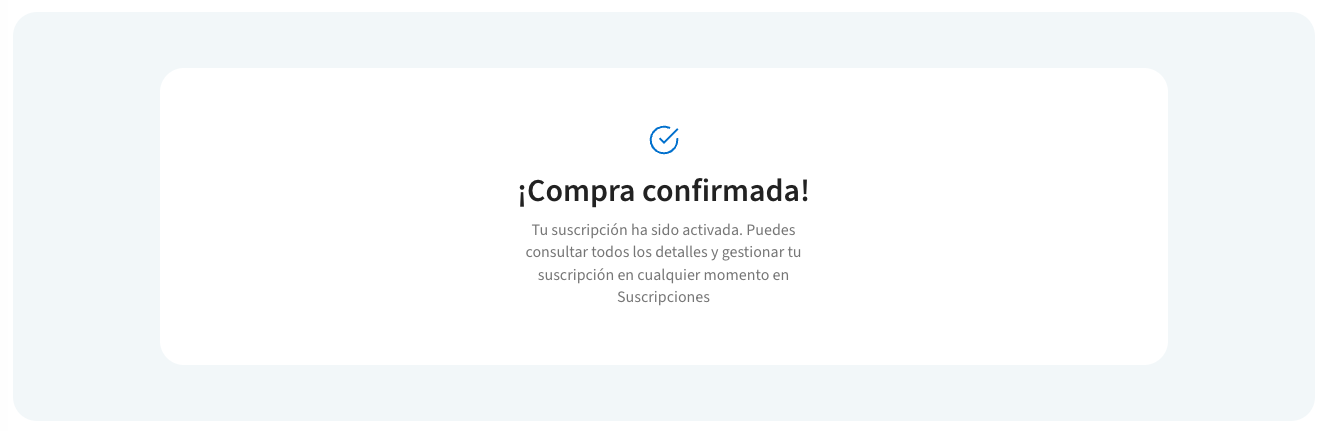

Success View

After successful purchase, the component displays a confirmation message:

​
Offer Display in Checkout

The checkout component uses two specialized card types for displaying offer details:

​
Integration with Offers

The checkout component can be accessed in several ways:
  1. From Offer Cards: When users click the CTA button on any offer card, they are directed to the checkout flow for that specific offer.
  2. Direct URL: Using the offer ID in the URL: /offers/checkout/{offerId}
  3. From Product Pages: When browsing product offers, the CTA buttons link to the checkout component.

​
Dynamic Height Adjustment

All components emit a postMessage event containing the scroll height. This allows for dynamic iframe height adjustment to prevent unwanted scrollbars.
window.addEventListener('message', function(e) {
  if (e.data && e.data.scrollHeight) {
    const iframe = document.querySelector('#myIframe');
    iframe.style.height = `${e.data.scrollHeight}px`;
  }
});
The component sends height updates on:
  • Initial load
  • State changes
  • Content updates
  • Error messages display
Remember to implement the height adjustment listener for all iframe integrations to ensure proper display without scrollbars.
